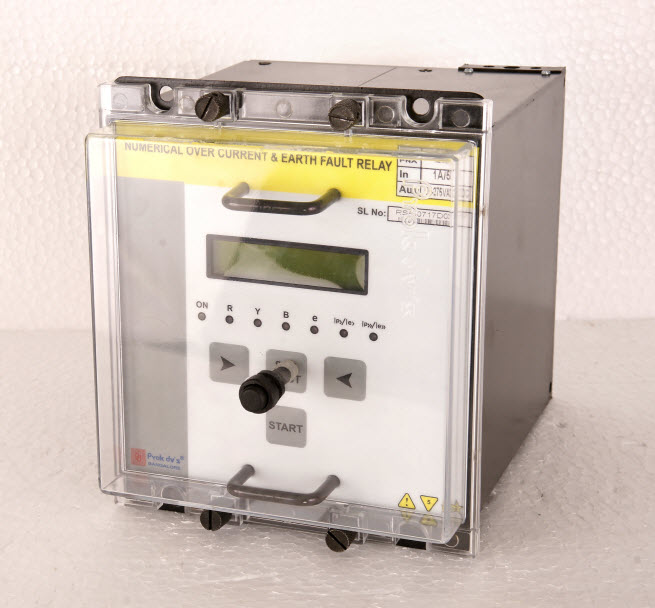

  • Numerical Draw-out 1 Earth Fault

    Model No : PNA402-ND


    Relay has modbus protocol with RS 485 port with baud rate 9600bps. Another
    model is established for special applications with baud rate115kbps.Relay records 99 faults
    with date and time. Relay rating (In) is field selectable- either 1A/5A.The output relays are
    configurable Configurable options for enabling & disabling of high-set in both Phase &
    earth.


    PNA TYPE IDMT/DEFINITE TIME/INSTANTANEOUS LOW-SET/HIGH-SET DIRECTIONAL
    NUMERICAL/MICROPROCESSOR BASED OVER CURRENT RELAY (OCT) WITH EARTH FAULT RELAY
    (EFR) receives the input current signals (phase current and neutral current) via four input
    current transformers. These signals are galvanically de-coupled, suitably filtered and fed to
    the micro-controller, for amplitude calculation and further logical processing

    Specification

    • Unique combination o f 50/51/50N/51N in a single gadget
    • Consistent repeat accuracy
    • Reliable auxiliary supply of wide range input of 18-85 or 85-275 volts AC or DC
    • Low AC burden
    • Definite time curve for both Phase & Earth along with optional user defined curve.
    • Relay test facility with relay trip & without relay trip
    • RS-485 communication port with modbus protocol
    • Enabling /Disabling o f High-Set
    • Membrane key pad for easy operation, dust proof front panel
