Product Details

  • Microprocessor based Din Mount 30-96A

    Model No : PDMMPR-04

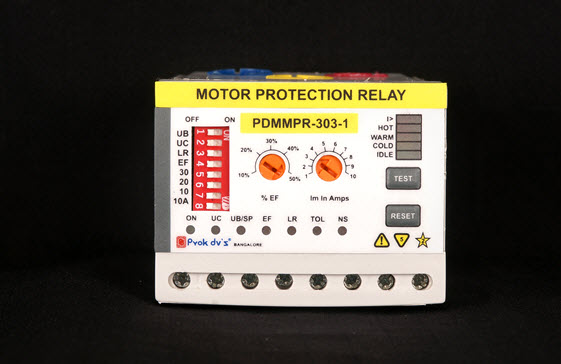

    The Microcontroller Based Motor Protection Relay does not require external Current Transformer (CT) for its operation for within the bandwidth of Im ranges. The three phase R, Y and B cables are made to pass through the CT hole which is in the relay. The built in CT’s takes care of stepping down of the Currents to the required level. The stepped down three phase Currents are continuously monitored by the relay to detect any abnormal behavior of the Motor and to make tripping decision.

    Specification

    • Accurate and Real Time TRUE RMS measurements
    • Motor Rated Current (Im) Selection by means of Pot meter with markings
    • Earth Fault Setting provided by means of Pot meter with markings
    • Selectable Thermal Trip Time characteristics Class - 10A, 10, 20 & 30
    • I > Thermal over load above105 % of Im - provided through visual led indication
    • Provided the Thermal replica for motor overload condition
    • Continuous monitoring of Motor IDLE/Stop, COLD, WARM, HOT, I> & Various Fault status through visual LED indication
    • Motor protections – UB (Unbalance), UC (Under current), LR (Locked rotor), EF (Earth fault) can be enabled or disabled using Dip switch setting
    • Manual TEST / RESET Facility
